A low impact CarbonKind™ product.

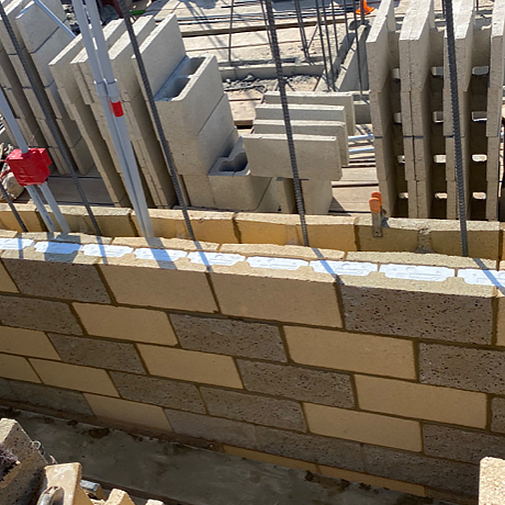

The Seismic 12 is designed as an open-ended solution for the ultimate strength of total wall height rebar embedded in the footing while meeting energy efficiency requirements. It maintains the same extended thermal path design but allows for more grout to achieve greater structural strength.

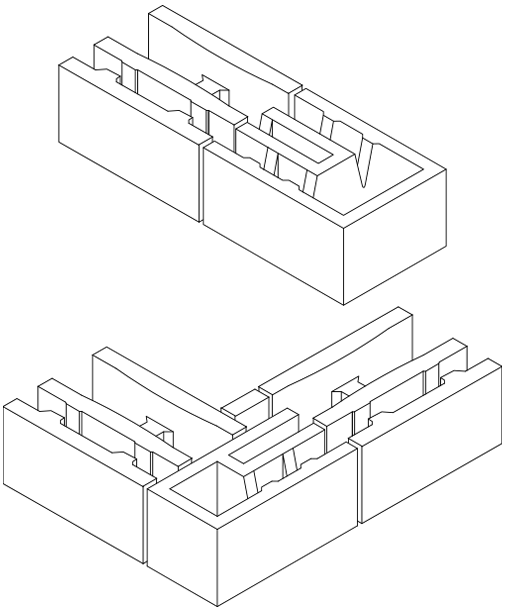

Corners may be constructed with the System 8 Left and Right Corner units, or standard 8x8x16 CMU if required for additional reinforcement and grout. Likewise, jamb or end-wall conditions may utilize the Jamb unit or 12x8x16 standard CMU.
The Short Insert is installed in the outer cells for continuous in-wall insulation.
Textures: available in Precision, Split Face, Burnished, and Shotblast.
For complete information please see https://www.omniblock.com/seismic-12/. Technical, design, and construction information is also available at https://www.omniblock.com/.

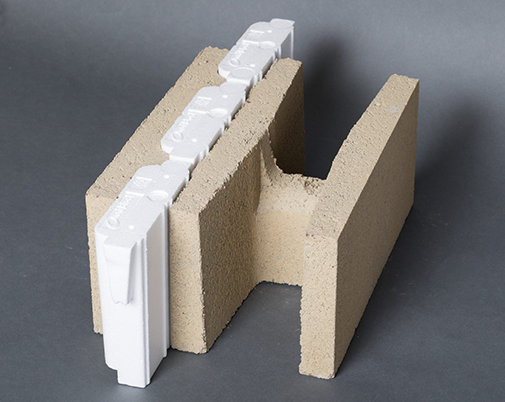

12" x 8" x 16" Seismic 12 Stretcher
Special Order.
This item may be limited in plant location or color availability.
12" x 8" x 16" Seismic 12 Jamb
Special Order.
This item may be limited in plant location or color availability.
Short Insert
Special Order.
California Energy Code (CEC) recognizes the effects of thermal mass in energy design, and states 8-inch wide or larger solid grouted concrete masonry does not require insulation in climate zones encompassing the metropolitan areas of Southern California for nonresidential projects.
For projects where requirements exceed the CEC, Omni Block is the preferred choice for maximum performance.
WARNING: This product can expose you to Silica, crystalline (airborne particles of respirable size) which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Learn more about CarbonKind here.
