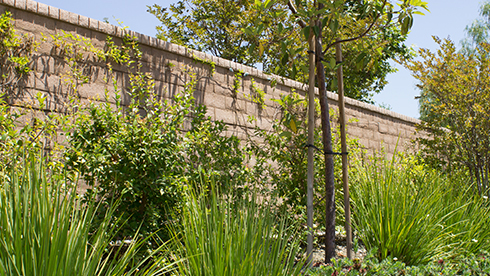

Proto II™ Wall Systems

Post Tensioned Fence and Retaining Walls

Post-tensioning of concrete has been in use for more than sixty years, and is commonly employed as a means to maximize the loading capabilities of concrete elements. Post tensioned concrete is typically employed in parking structures, office buildings, and many other structures where service loads are substantial. Residential builders are familiar with its use in floor slabs.

The specific application of post-tensioning to Proto II™ fencing has been in use for more than thirty years, and utilizes the internationally recognized benefits of post-tensioning concrete and masonry structures. It is a solidly established method of design.

Proto II's adaptation of this technology provides a site wall unlike anything obtainable with conventional masonry methods, or other less-durable, flimsy, or even toxic fencing options.

Proto II™ Fence Walls consist of an active system of tension rods rather than rebar/grout, an optimized concrete footing, and tensioning hardware. It's simple, light, ductile, and very strong. Cost-efficient and time-efficient, Proto II™ walls offer many benefits unique to its post-tension design. Multiple design options are available within the system's standard design package, including combination retaining and post-tension fences, tall walls, view walls, and more.

Proto II™ 4-Inch Lot Separation Walls : Innovation for Interior Masonry Fencing. The perfect alternative to low-cost, inferior lot separation fencing: a special Proto II™ post tensioned masonry design for 4-inch wide walls in B@100 applications. It offers the safety, durability, and marketability of a masonry fence at a price competitive with vinyl.

Click on the section links above for more information on each system. Contact your Angelus Block representative for details.

The fence wall designs referenced are offered as a courtesy to licensed contractors and building professionals. It is the responsibility of the user to verify the Design Criteria are appropriate for a specific project under consideration and are approved for the project by the governing agency.

Proto II™ fence and retaining wall designs and details are the products of licensed professional engineers as noted on each Proto II™ Wall Systems detail. Proto II™ Wall Systems are installed by authorized contractors only.
